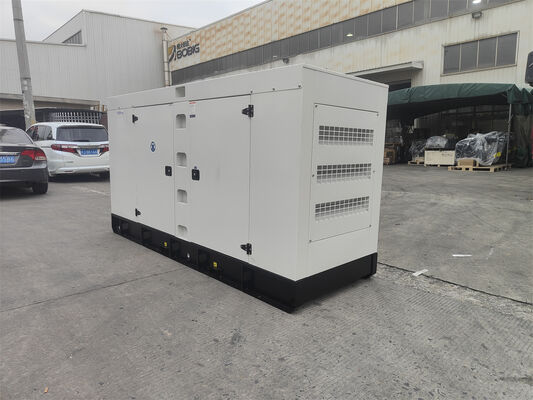

High-performance 610kW silent diesel generator set designed for industrial applications requiring continuous operation with minimal noise disruption.
Our DP222CA model delivers reliable power for industrial and commercial applications with customizable power options to meet specific requirements.
| General information | Prime power | Standby power |
|---|---|---|
| Rated Power (kVA) | 763 | 839 |
| Power Rating (kW) | 610 | 671 |
| Frequency (Hz) | 50 | |
| Engine Model | DP222CA | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated voltage (V) | 400/230 | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |
PRP ● Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP ● The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating
| Dimension and Weight | BDO839 Open type | BDO839S Silent type |
|---|---|---|
| Length (L) mm | 4500 | 5600 |
| Width (W) mm | 1800 | 2200 |
| Height (H) mm | 2745 | 2550 |
| Tank capacity (L) | 1403 | 1403 |
| Engine model & manufacturer | DP222CA(DOOSAN) |
|---|---|
| Engine Model | DP222CA |
| Engine Type | 4-Cycle, V-Type, 12-Cylinder Diesel, water cooled, Turbo charged & intercooled |
| Bore x stroke | 128 x 142 mm |
| Displacement | 21.927 liters |
| Compression ratio | 14.6 : 1 |
| Rotation | Counter clockwise viewed from flywheel |
| Firing order | 1-12-5-8-3-10-6-7-2-11-4-9 |
| Dry weight | 1,676 Kg (W/O Fan) |
| Dimension (LxWxH) | 1,658 x 1,593 x 1,701 mm |
| Speed drop | G3 Class ( KS R ISO 8528-5 ) |
| Injection timing | Controlled by ECU |
| Flywheel housing | SAE NO.0 (18 Inch.) |
| Flywheel | Clutch NO.18M |
| Number of teeth on flywheel ring gear | 117 |
| Alternator | |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-404C |
| Alternator Rated Power | 610kw/763kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
Established in 2004, Fujian Bobig Electric Machinery Co., Ltd. specializes in technological research, production, and sales of electrical machinery. Operating from a 10,000 square meter facility with 160 employees including 20 technicians.
Comprehensive product line including air-cooled gasoline generators, air-cooled diesel generators, air-cooled welding & generating sets, and water-cooled diesel generator sets. Known for reliable quality in small air-cooled brushless generators and welding sets.
Adhering to "Quality, Creation, Service and Development" principles with continuous technology updates and quality improvements. Advanced testing equipment includes CAD systems, automated assembly equipment, and digital testing systems. ISO9000 Quality System Certified.
We are a professional manufacturer with our own factory located in Fujian, China. We welcome facility visits to observe our quality control processes firsthand.
Standard MOQ is 1 set. We offer flexible terms for volume orders and provide competitive pricing for larger projects.
Production time varies by quantity and inventory status. Standard models typically require 20-30 days. We provide precise timelines upon order confirmation.
We commonly accept T/T with 30% deposit and 70% balance before shipment. For established relationships, we can discuss alternative terms including L/C.
Yes, every unit undergoes thorough testing and inspection in our factory before shipment to ensure quality and performance standards.
