| Prime Power | Standby Power | |
|---|---|---|
| Rated Power (kVA) | 63 | 69 |
| Power Rating (kW) | 50 | 55 |
| Frequency (Hz) | 50 | |
| Engine Model | YN38DTD60 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

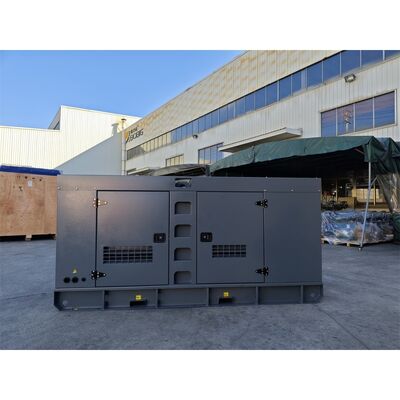

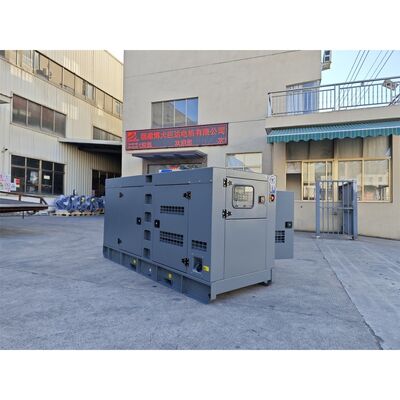

| Model | BYN69 (Open Type) | BYN69S (Silent Type) |
|---|---|---|
| Length (mm) | 1850 | 2450 |
| Width (mm) | 730 | 930 |
| Height (mm) | 1350 | 1200 |
| Tank Capacity (L) | 115 | 115 |
| Engine Model & Manufacturer | YN38DTD60 (YUNNEI) |
| Engine Rated Speed (rpm) | 1500 |
| Generator Set Frequency (Hz) | 50 |
| Engine Prime Power (PRP) (kW) | 60 |
| Length (mm) | 980 |
| Width (mm) | 670 |
| Height (mm) | 800 |
| Engine Dry Weight w/o Cooling System (kg) | 330 |
| Aspiration Type | Turbocharged |
| Injection Type | Direct |
| Configuration | Vertical |
| No. of Cylinders | 4 |
| Displacement (liters) | 3.76 |
| Bore (mm) | 102 |
| Stroke (mm) | 115 |
| Compression Ratio | 17.5 |
| Piston Speed (m/s) | 6.52/7.82 |
| Rotation Direction (from flywheel) | Anti-clockwise |
| Number of Flywheel Teeth | 130 |
| Flywheel House Size | SAE3 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224E |
| Alternator Rated Power | 50kw/63kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
