| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 450 | 495 |
| Power Rating (kW) | 360 | 396 |
| Frequency (Hz) | 50 | |
| Engine Model | DP126CE | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

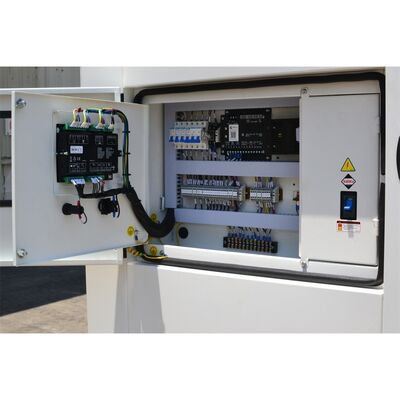

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Operating Time | ≥ 8h @ 75% load | |
| Model | BDO495 (Open) | BDO495S (Silent) |
|---|---|---|
| Length (mm) | 3100 | 4050 |
| Width (mm) | 1050 | 1510 |
| Height (mm) | 2150 | 2050 |
| Tank Capacity (L) | 828 | 828 |
| Engine Model & Manufacturer | DP126CE (DOOSAN) |
| Engine Type | 4-stroke, in-line 4 cylinder, water cooled, common rail direct injection |
| Bore x Stroke | 123 x 155 mm |
| Displacement | 11.051 liters |
| Compression Ratio | 16.5:1 |
| Rotation | Counter clockwise viewed from flywheel |
| Firing Order | 1-5-3-6-2-4 |
| Dry Weight | 1058 kg (engine only) |
| Dimension (LxWxH) | 1,411 x 1,133 x 1,323 mm |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Model | BW-354C |
| Rated Power | 360kW/450kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
