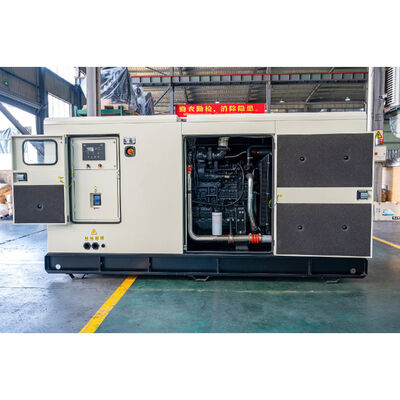

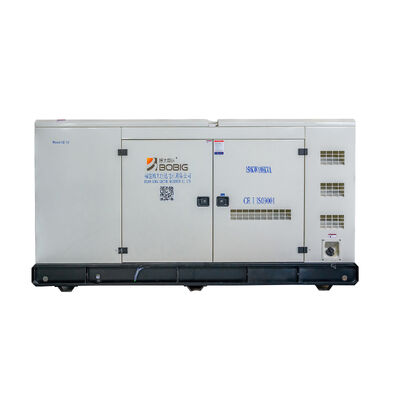

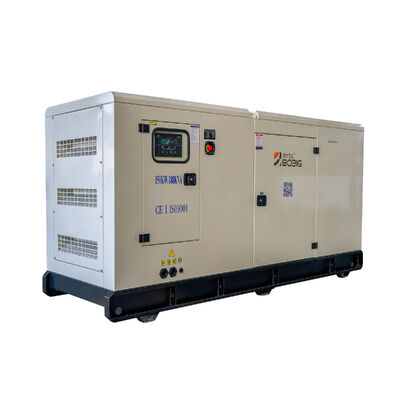

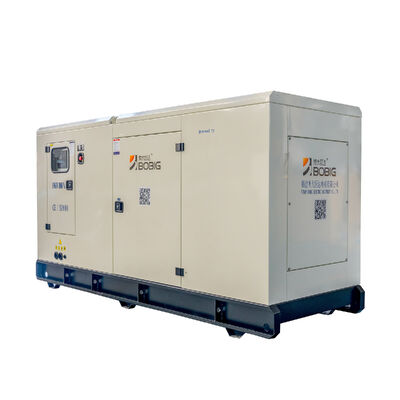

Our YTO LR6A3L-D Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 100kW unit is encased in a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 125 | 138 |
| Power Rating (kW) | 100 | 110 |
| Frequency (Hz) | 50 | |
| Engine Model | LR6A3L-D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |

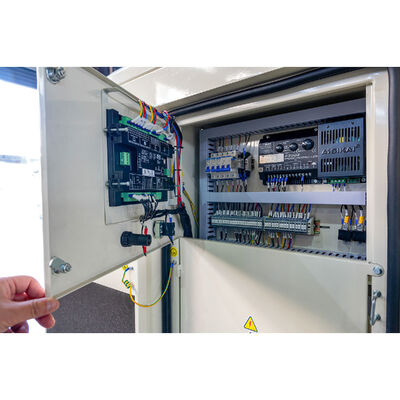

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8 hours @ 75% load | |
| Dimension and Weight | BYT138 (Open Type) | BYT138S (Silent Type) |
|---|---|---|
| Length (L) mm | 2350 | 2950 |
| Width (W) mm | 800 | 1040 |
| Height (H) mm | 1580 | 1480 |
| Tank Capacity (L) | 230 | 230 |

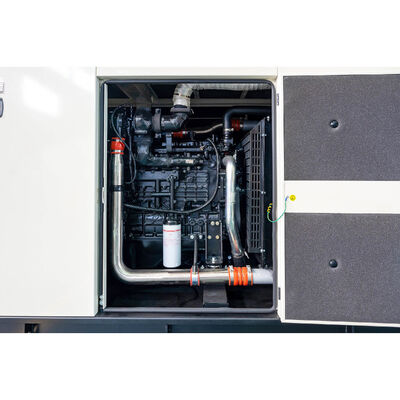

| Engine Model & Manufacturer | LR6A3L-D (YTO) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke, compression ignition |
| Air Aspiration Method | Turbocharged with air-air intercooler |
| Cooling Medium | Liquid |
| Bore | 105 mm |
| Stroke | 125 mm |
| Compression Ratio | 17.0:1 |
| Cubic Capacity | 6.49 L |
| Dry Engine Weight | 665 kg |
| Dimension (L×W×H) | 1081 × 1456 × 708 mm |
| Rotation Direction | Anti-clockwise viewed on flywheel |
| Governed Engine Speed | 1500 RPM |
| Firing Order | 1-3-4-2 (1 cylinder furthest from flywheel) |
| Steady State Speed Stability | 3% |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274D |
| Alternator Rated Power | 100kW / 125kVA |
| Rated Voltage | 230V / 400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤ 50 |
| THF | ≤ 2% |
| Voltage Regulation, Steady State | ≤ ±1% |
| Specific Fuel Consumption | ≤ 202g/kW·h |
| Transient State Voltage | ≤ -15% ~ +20% |
