| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 500 | 550 |
| Power Rating (kW) | 400 | 440 |
| Frequency (Hz) | 50 | |
| Engine Model | KTA19-G3A | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

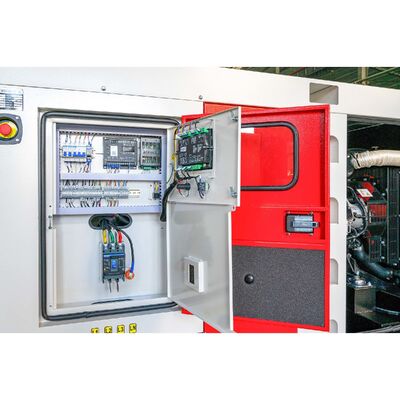

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

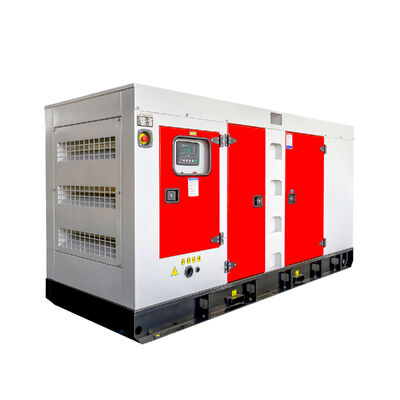

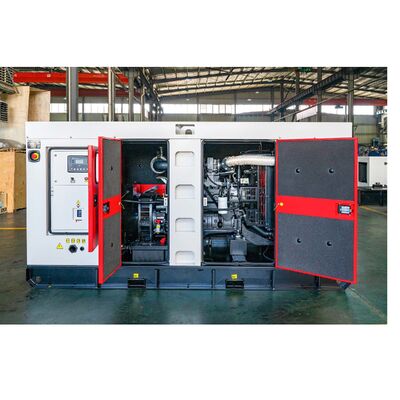

| Model | BC550 (Open Type) | BC550S (Silent Type) |
|---|---|---|
| Length (L) mm | 3350 | 4600 |
| Width (W) mm | 1300 | 1580 |
| Height (H) mm | 2050 | 2200 |
| Tank Capacity (L) | 920 | 920 |

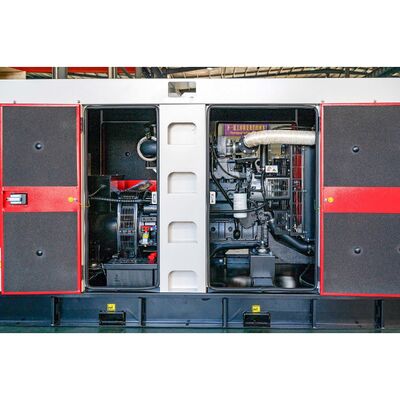

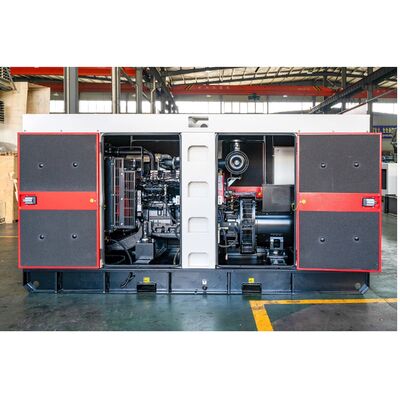

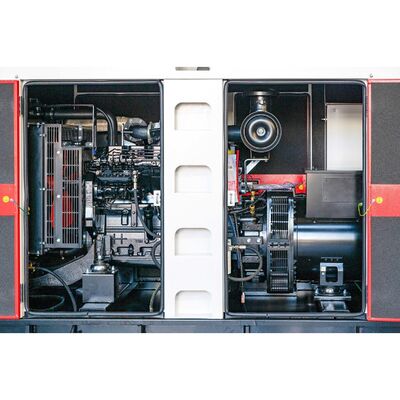

| Engine Model & Manufacturer | KTA19-G3A (Cummins) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged, Aftercooled |
| Bore x Stroke | 159 x 159 mm |
| Displacement | 19 L |
| Compression Ratio | 13.9:1 |
| Prime Power/Speed | 448 kW/1500 rpm |
| Standby Power/Speed | 498 kW/1500 rpm |
| Fuel System | Cummins PT |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 30.3 L |
| Coolant Capacity (Engine Only) | 18.9 L |
| Fuel Consumption (100% Load) | 203 g/kWh @1500 rpm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354D |
| Alternator Rated Power | 400kw/500kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
