| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 30 | 33 |
| Power Rating (kW) | 24 | 26 |
| Frequency (Hz) | 50 | |
| Engine Model | 4DW92-39D-HMS20W | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 | |
| Fuel Tank Capacity Operating Time | ≥ 8 hours @ 75% load | |

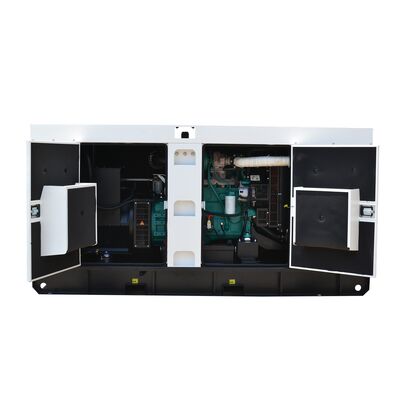

| Model | BFA33 (Open Type) | BFA33S (Silent Type) |
|---|---|---|
| Length (mm) | 1550 | 2150 |
| Width (mm) | 610 | 880 |
| Height (mm) | 1220 | 1050 |
| Tank Capacity (L) | 55 | 55 |
| Engine Model & Manufacturer | 4DW92-39D-HMS20W (FAWDE) |
| Number of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Cycle | 4 Stroke |
| Aspiration | Turbocharged |
| Cooling System | Water-cooled |
| Bore | 90 mm |
| Stroke | 100 mm |
| Compression Ratio | 17:1 |
| Displacement | 2.54 L |
| Dry Engine Weight | 250 kg |
| Dimensions (L×W×H) | 700 × 590 × 680 mm |
| Flywheel Shell Interface | SAE4-7.5" |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-184G |
| Rated Power | 24kW / 30kVA |
| Rated Voltage | 230V / 400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H Class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15% ~ +20% |
| Engine | Alternator | Fuel System | Generating Set |
|---|---|---|---|
| Water Jacket Preheater | PMG Excitation | 12/24 Hour Base Tank | Deepsea, ComAp, Smartgen Controllers |
| Oil Preheater | Space Heater | Bunded Fuel Tank | Trailer |
| Oil Manual Pump | Winding Temperature Measuring | External Fuel Tank | Tools with Machine |
| Automatic Fuel Feeding | |||
| Switch Between External Tank and Base Tank |
