| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 225 | 248 |
| Power Rating (kW) | 180 | 198 |
| Frequency (Hz) | 50 | |
| Engine Model | 1206A-E70TTAG2 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

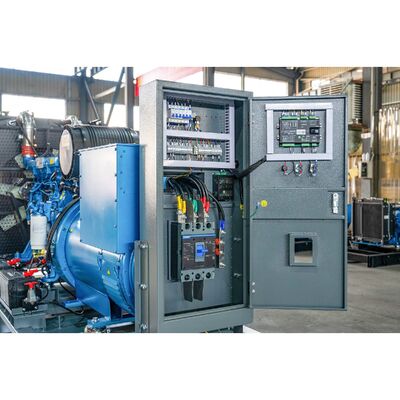

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BP248 (Open Type) | BP248S (Silent Type) |
|---|---|---|
| Length (mm) | 2600 | 3400 |
| Width (mm) | 1000 | 1250 |
| Height (mm) | 1850 | 1750 |
| Tank Capacity (L) | 414 | 414 |

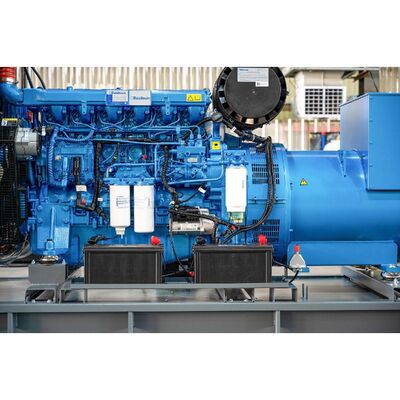

| Engine Model & Manufacturer | 1206A-E70TTAG2 (PERKINS) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | Vertical Inline |
| Cycle | Four Stroke |
| Aspiration | Twin Turbocharged, Aftercooled |
| Bore x Stroke | 105 x 135 mm |
| Cubic Capacity | 7.01 L |
| Compression Ratio | 15.8:1 |
| Prime Power/Speed | 204.9 kW/1500 rpm |
| Standby Power/Speed | 226.8 kW/1500 rpm |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 13.0 L |
| Coolant Capacity (Engine Only) | 16.0 L |
| Fuel Consumption @ 100% Load | 206 g/kWh @1500 rpm |

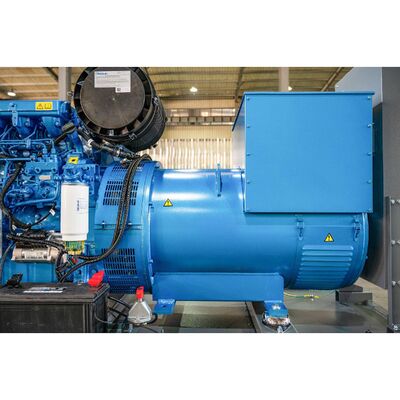

| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274J |
| Rated Power | 180kW/225kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Insulation Class | H Class |
| Voltage Regulation, Steady State | ≤±1% |
