Our 200kW 250KVA BOBIG FAWDE diesel generator (Model: CA6DL2-30D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 250 | 275 |
| Power Rating (kW) | 200 | 220 |
| Frequency (Hz) | 50 | |
| Engine Model | CA6DL2-30D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

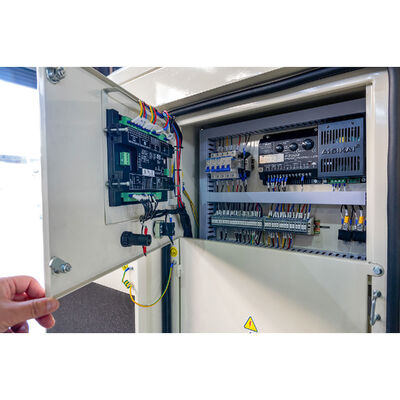

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Parameter | Specification |
|---|---|
| Engine Model & Manufacturer | CA6DL2-30D (FAWDE) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged & Intercooled |
| Cooling System | Water-cooled |
| Bore | 112 mm |
| Stroke | 145 mm |
| Compression Ratio | 17.5:1 |
| Displacement | 8.57 L |
| Dry Engine Weight | 830 kg |
| Parameter | Specification |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274K |
| Alternator Rated Power | 200kW/250kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Insulation Class | H class |

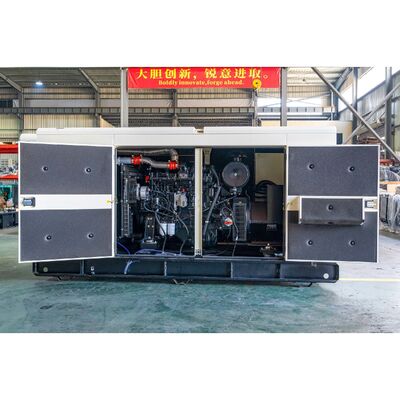

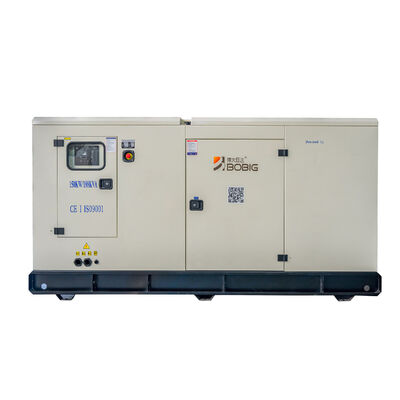

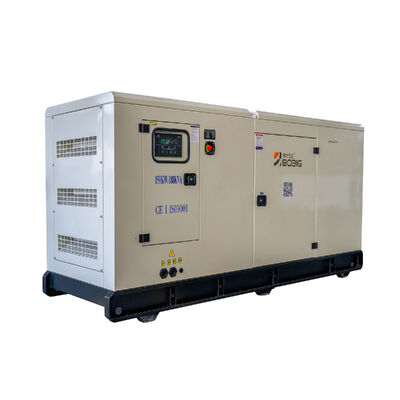

| Model Type | Open Type (BFA275) | Silent Type (BFA275S) |
|---|---|---|
| Length (mm) | 2600 | 3700 |
| Width (mm) | 1100 | 1220 |
| Height (mm) | 1850 | 1950 |
| Tank Capacity (L) | 460 | 460 |
Our generator complies with multiple international and national standards, including:
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Plywood case packaging with delivery within 10-15 working days after receiving customer deposit.
Q: What is your MOQ, payment method, and delivery time?
A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.
Q: Which port do you use for export?
A: Fuzhou port, Fujian province or as customer request.
Q: Can you provide spare parts for maintenance?
A: Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance.
