| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 200 | 220 |
| Power Rating (kW) | 160 | 176 |
| Frequency (Hz) | 50 | |
| Engine Model | 1106A-70TAG4 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

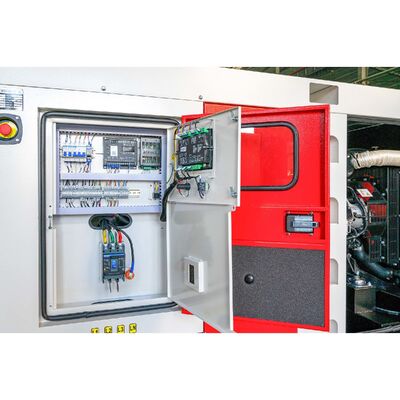

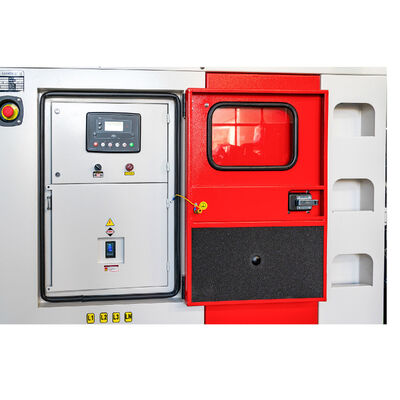

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

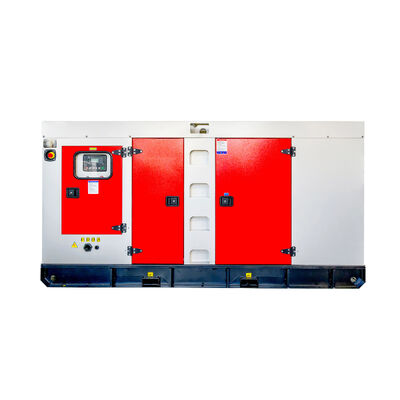

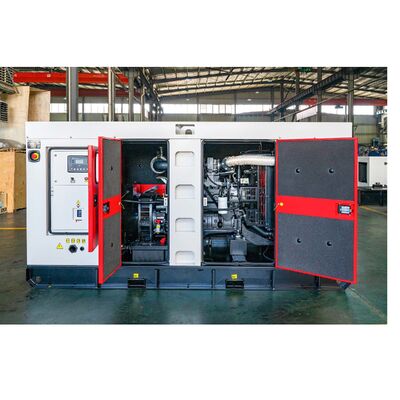

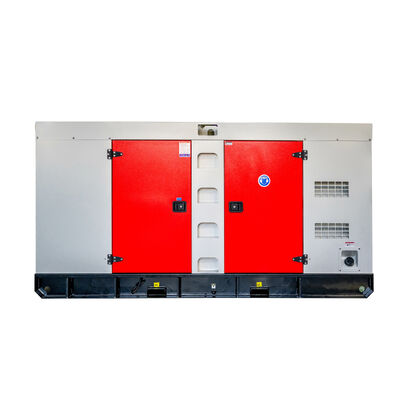

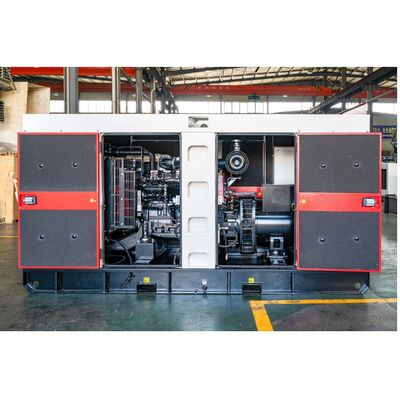

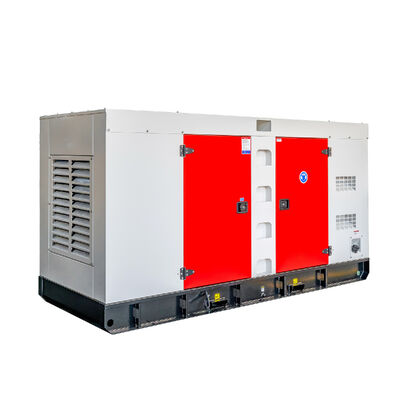

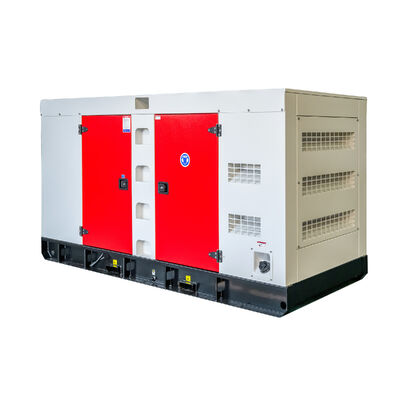

| Model | BP220 (Open Type) | BP220S (Silent Type) |
|---|---|---|
| Length (mm) | 2450 | 3250 |
| Width (mm) | 820 | 1040 |
| Height (mm) | 1550 | 1500 |
| Tank Capacity (L) | 368 | 368 |
| Engine Model & Manufacturer | 1106A-70TAG4 (PERKINS) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | Vertical inline |
| Cycle | Four stroke |
| Aspiration | Turbocharged and air charge cooled |
| Bore x Stroke | 105 x 135 mm |
| Cubic Capacity | 7.01 L |
| Compression Ratio | 16.0:1 |
| Prime Power/Speed | 173.9 kW/1500 rpm |
| Standby Power/Speed | 191.3 kW/1500 rpm |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 12.5 L |
| Coolant Capacity (engine only) | 18.0 L |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274H |
| Alternator Rated Power | 160kw/200kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
