| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 900 | 990 |
| Power Rating (kW) | 720 | 792 |
| Frequency (Hz) | 50 | |
| Engine Model | 6KTAA25-G320 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated voltage (V) | 400/230 (According to customer requirements) | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |

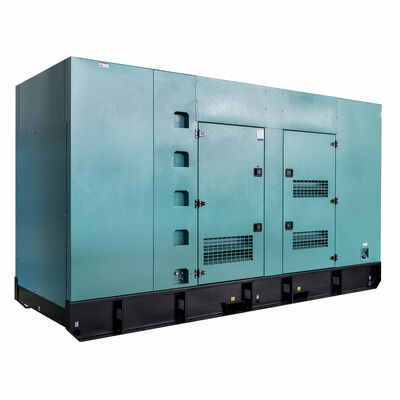

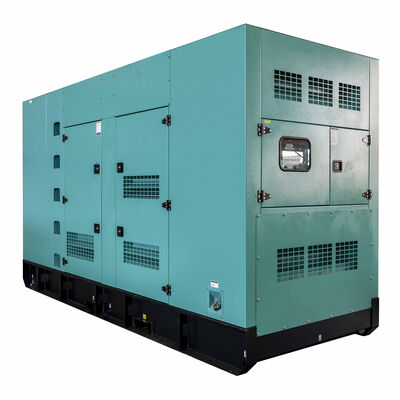

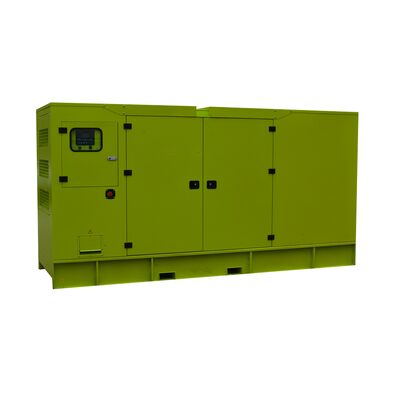

| Model | BSD990 (Open type) | BSD990S (Silent type) |
|---|---|---|
| Length (L) mm | 4360 | 5600 |
| Width (W) mm | 1600 | 2200 |
| Height (H) mm | 3375 | 2550 |
| Tank capacity (L) | 1656 | 1656 |
| Engine model & manufacturer | 6KTAA25-G320 (SDEC) |
| Engine Model | 6KTAA25-G320 |
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler |
| Combustion type | Direct injection |
| Cylinder Type | wet cylinder liner |
| Number of cylinders | 6 |
| Bore × stroke | 170 × 185 mm |
| Displacement | 25.2 lit. |
| Compression ratio | 14.5 : 1 |
| Firing order | 1-5-3-6-2-4 |
| fuel injection advance angle | electronic control |
| Dry weight | 2850 kg |
| Dimension | 2302 ×1544 ×1598mm |
| Rotation | CCW viewed from flywheel |
| Fly wheel housing | SAE 0# |
| Fly wheel | SAE 18#(number of teeth: 143) |
| Injection pump | HPCR |
| Governor | Electric type |
| Feed pump | Electric type |
| Injection nozzle | Multi hole type |
| Heavy duty diesel engine | Starter battery (with lead acid) including rack and cables |
| Anti-vibration mount | Flexible fuel connection hoses |
| Replaceable fuel filter, oil filter & air filter | Exhaust silencer and bellows |
| Cooling radiator and fan | Operation manuals and circuit diagram documents |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-404D |
| Alternator Rated Power | 720kw/900kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
