| General information | Prime power | Standby power |
|---|---|---|
| Rated Power (kVA) | 625 | 688 |
| Power Rating (kW) | 500 | 550 |
| Frequency (Hz) | 50 | |
| Engine Model | SC27G830D2 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated voltage (V) | 400/230 (According to customer requirements) | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |

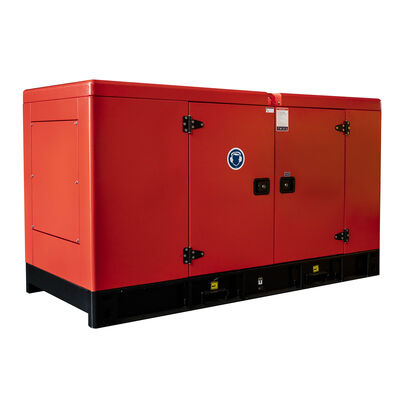

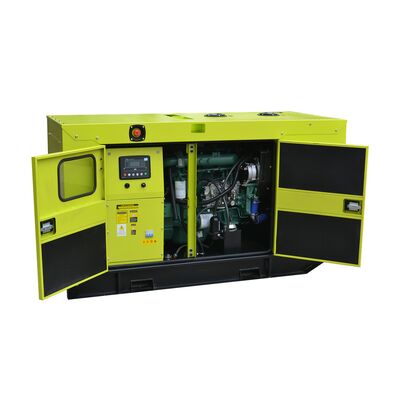

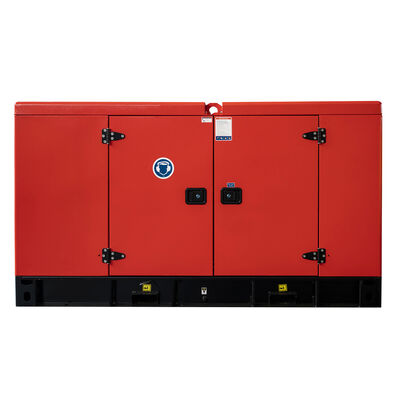

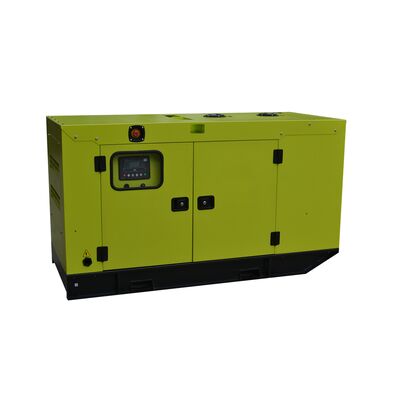

| Dimension and Weight | Open type | Silent type |
|---|---|---|
| Model | BSD688 | BSD688S |
| Length (L) mm | 3800 | 4500 |
| Width (W) mm | 1740 | 1810 |
| Height (H) mm | 2745 | 2360 |
| Tank capacity (L) | 1150 | 1150 |
| Engine model & manufacturer | SC27G830D2(SDEC) |
|---|---|
| Engine Model | SC27G830D2 |
| Engine Type | V-type, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler |
| Combustion type | Direct injection |
| Cylinder Type | wet cylinder liner |
| Number of cylinders | 12 |
| Bore × stroke | 135 × 155 mm |
| Displacement | 26.6 lit. |
| Compression ratio | 16 : 1 |
| Firing order | 1-12-5-8-3-10-6-7-2-11-4-9 |
| fuel injection advance angle | 13.5°BTDC |
| Dry weight | 2080 kg |
| Dimension | 1930×1686×1872mm |
| Rotation | CCW viewed from flywheel |
| Fly wheel housing | SAE 0# |
| Fly wheel | SAE 18#(number of teeth: 137) |
| Injection pump | YiJie Inline Type P Pump |
| Governor | Electric type |
| Feed pump | Mechanical type |
| Injection nozzle | Multi hole type |
| Heavy duty diesel engine | Starter battery (with lead acid) including rack and cables |
| Anti-vibration mount | Flexible fuel connection hoses |
| Replaceable fuel filter, oil filter & air filter | Exhaust silencer and bellows |
| Cooling radiator and fan | Operation manuals and circuit diagram documents |
| Alternator Brand | BOBIG |
|---|---|
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354E |
| Alternator Rated Power | 500kw/625kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
