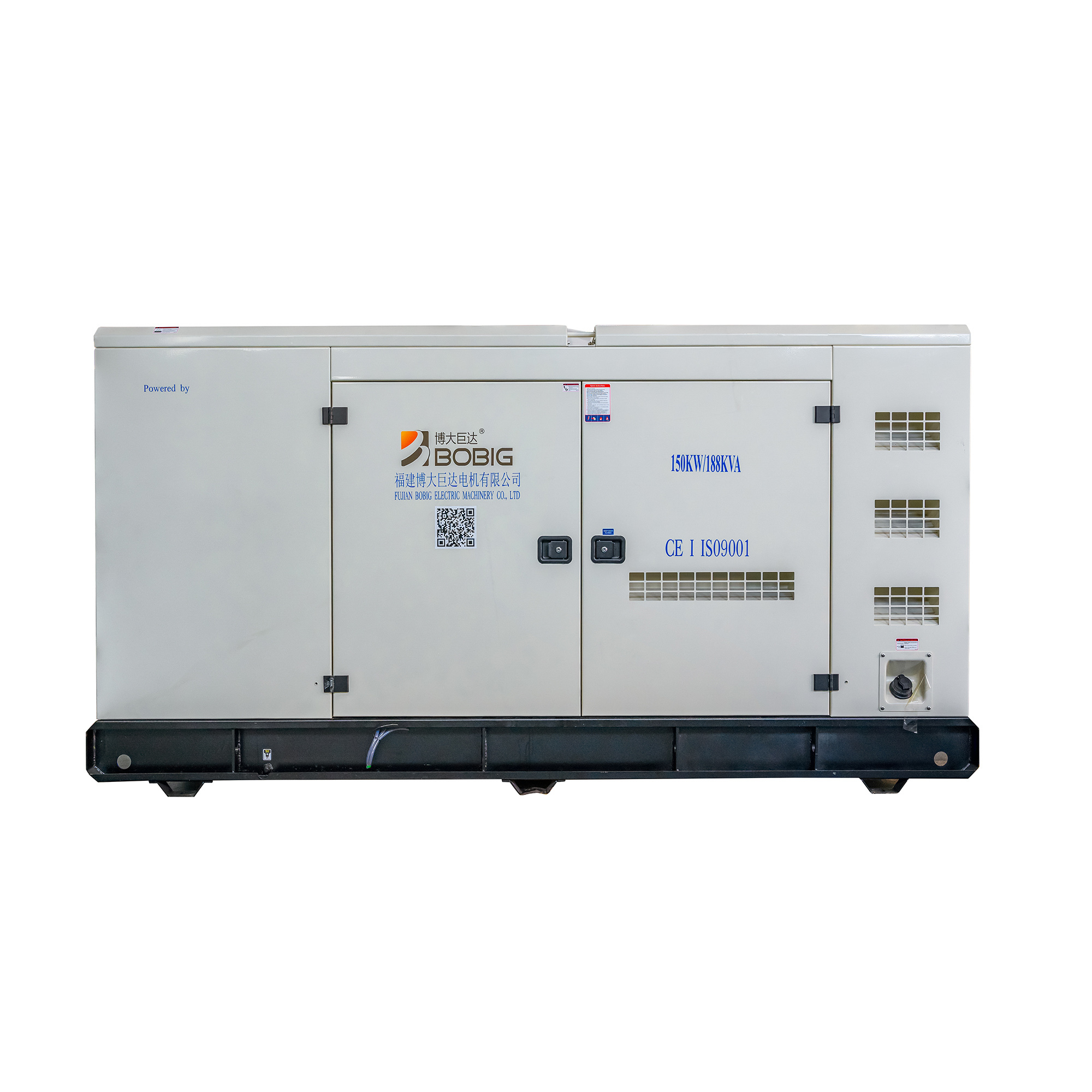

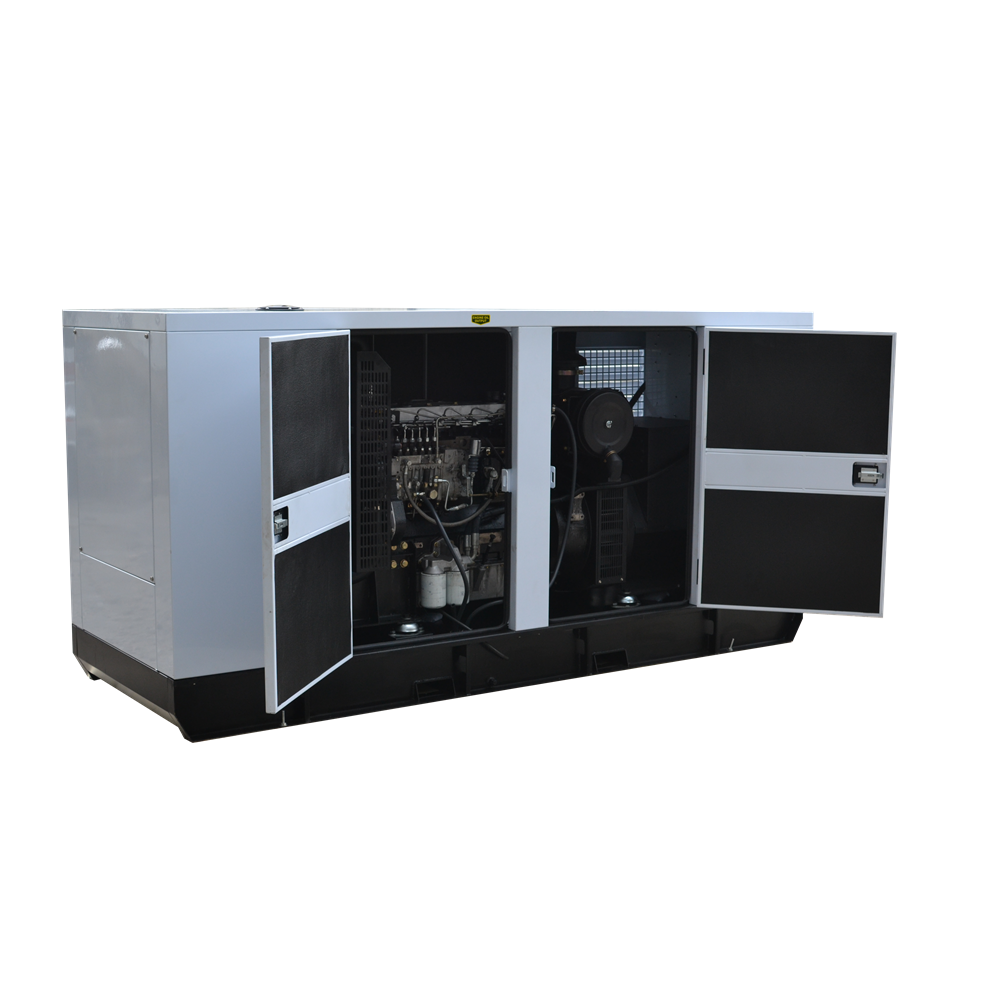

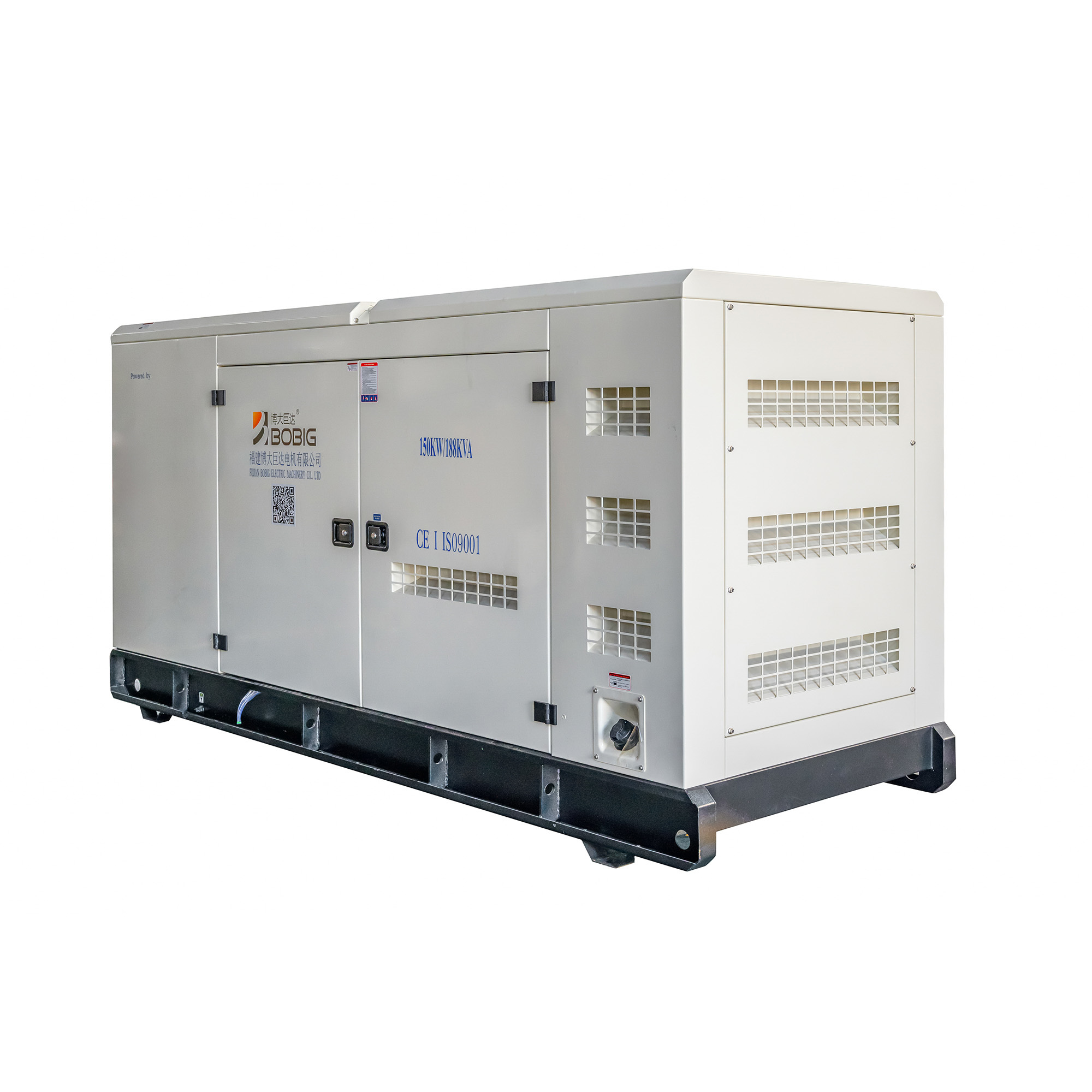

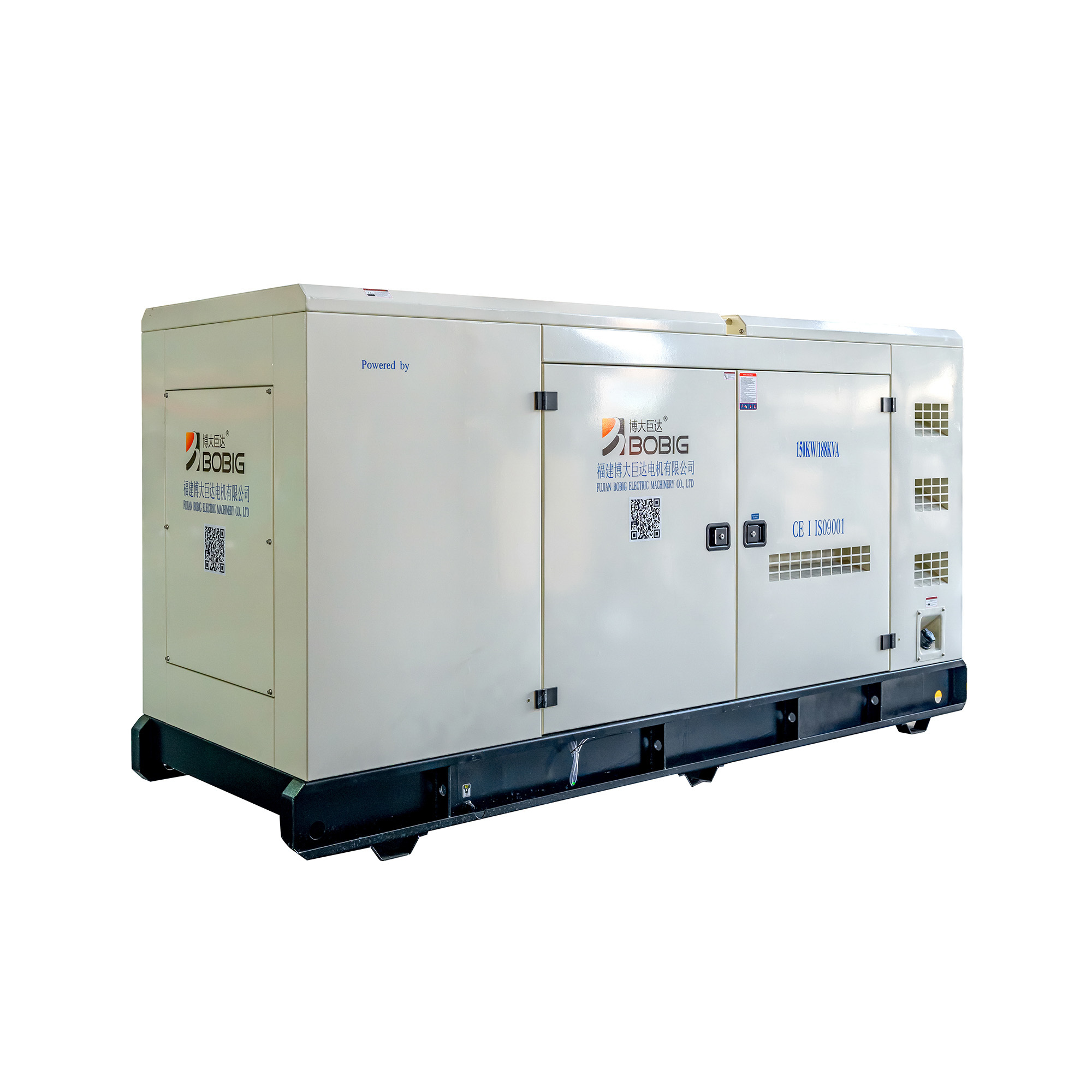

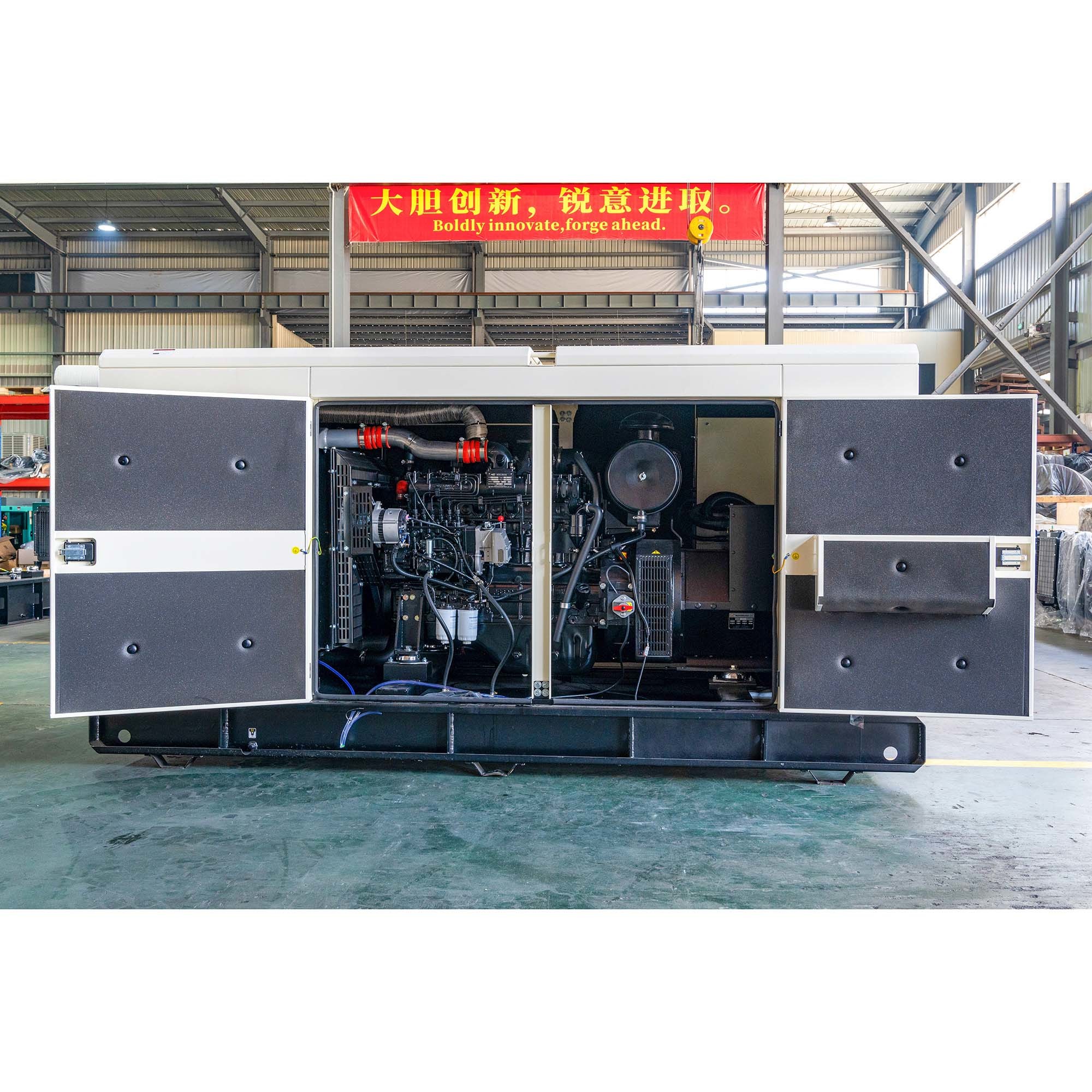

Our BOBIG 3TNV84T-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANMAR engine, this 12kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 15 | 17 |
| Power Rating (kW) | 12 | 13 |
| Frequency (Hz) | 50 | |
| Engine Model | 3TNV84T-GGE | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP (Prime Power Rating): Available for an unlimited number of annual hours in variable load applications, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel or negotiated outage operation capability is available at this rating.
| Model | BYN17 (Open Type) | BYN17S (Silent Type) |
|---|---|---|
| Length (L) mm | 1400 | 1850 |
| Width (W) mm | 610 | 850 |
| Height (H) mm | 1130 | 1030 |
| Tank Capacity (L) | 28 | 28 |
| Engine Model & Manufacturer | 3TNV84T-GGE (YANMAR) |
| Engine Type | 4 cycle, Inline, Water-cooled Diesel |
| Number of Cylinders - Bore × Stroke (mm) | 3 - φ84 × 90 |
| Combustion System | Direct Injection |
| Compression Ratio | 19 |
| Displacement (liter) | 1.496 |
| Rated Output | 15.8 kW (21.5 PS)/18.8 kW (25.6 PS) |
| Continuous Rating | 14 kW (19 PS)/16.5 kW (24.4 PS) |
| Specific Fuel Consumption | 245 g/kW-h (180 g/PS-h) at rated output |
| Engine Dry Weight (kg) | approx. 161 |
| Direction of Rotation | Counterclockwise (viewed from F.W.) |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-164D |
| Alternator Rated Power | 12 kW / 15 kVA |
| Rated Voltage (V) | 230 V / 400 V |
| Rated Frequency | 50 Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Insulation Class | H Class |
| Voltage Regulation, Steady State | ≤ ±1% |
Automatic start and auto mains failure control module (Alternator frequency & CAN speed sensing)
