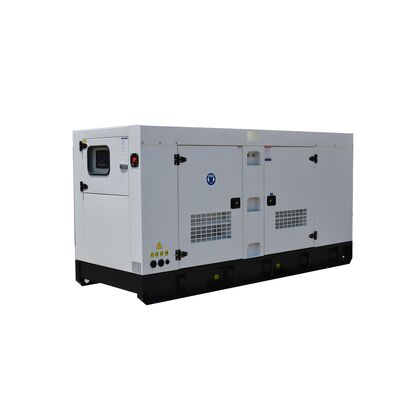

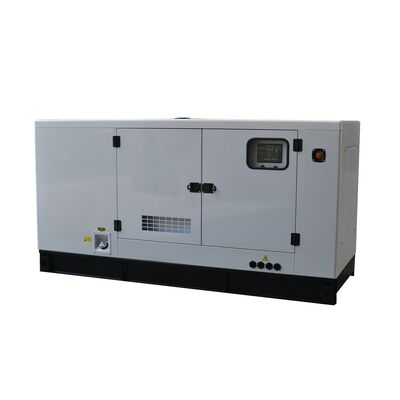

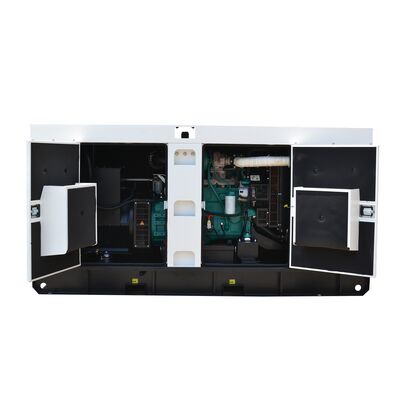

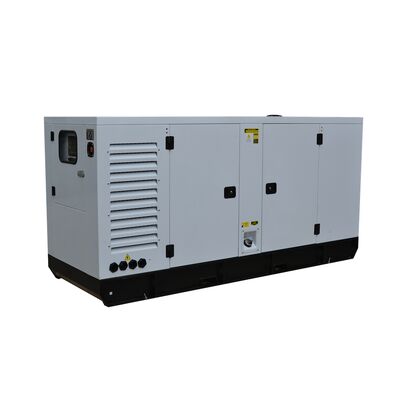

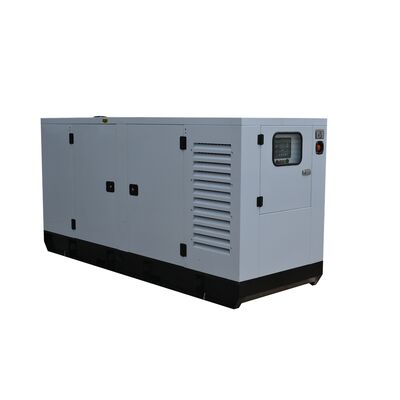

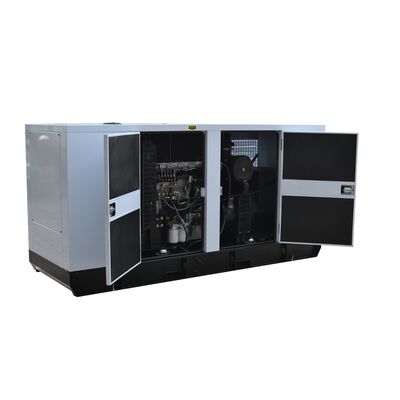

Our 180kW 225KVA BOBIG FAWDE diesel generator (Model: CA6DL2-27D) provides reliable power for industrial, commercial, and residential applications. Backed by the FAWDE brand, it delivers high-quality performance and long-term durability.
| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 225 | 248 |
| Power Rating (kW) | 180 | 198 |
| Frequency (Hz) | 50 | |
| Engine Model | CA6DL2-27D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8 hours @ 75% load | |
| Parameter | Specification |
|---|---|
| Engine Model & Manufacturer | CA6DL2-27D (FAWDE) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged & Intercooled |
| Cooling System | Water-cooled |
| Bore | 112 mm |
| Stroke | 145 mm |
| Compression Ratio | 17.5:1 |
| Displacement | 8.57 L |
| Dry Engine Weight | 830 kg |
| Dimension (L*W*H) | 1308*778*986 mm |
| Parameter | Specification |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274J |
| Alternator Rated Power | 180kW/225kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Protection Grade | IP23 |
| Insulation Class | H class |
| Model | BFA248 (Open) | BFA248S (Silent) |
|---|---|---|
| Length (mm) | 2600 | 3700 |
| Width (mm) | 1100 | 1220 |
| Height (mm) | 1850 | 1950 |
| Tank Capacity (L) | 414 | 414 |
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of defective parts during warranty and ongoing technical support.
